CM20 / CM30

CM20-30

CM20 / CM 30 are digital panels suitable for mid-power engines.
They represent the ideal solution when all engine basic readings have to be monitored.
Inputs are compatible with the most common commercial transducers.
CM20 / CM30 can be installed on the dashboard or on a electric board protecting the back against water. Control and visualization parts are protected by a polycarbonate front mounted on an aluminum support.

Standard Features
Visualization
Six readings in 1×4-digits, 2×3-digits 7-segments display:
– RPM
– Working hours
– Battery voltage
– Water temperature
– Fuel level
– Engine Oil pressure
Seven warning lamps for signallings and alarms:
– Low oil pressure
– High water temperature
– Alternator
– Low battery
– Alarm 1
– Low fuel level
– Preheating (only on request)
Variable brightness intensity

On request
Automatic stop
Automatic stop selector (override)
Acoustic alarm remote repeating
Remote alarm/signalling acknowledgment input
Pre-heating management
Two or more panels connected together for a control Multi-Station
The monitoring unit can be supplied apart
Painted metal enclosure box, fixed by four anti-vibration supports

 CM20-30
Power supply12 Vcc (6-15 V) - 12/24Vcc (10-30 V)
Power consumption< 6 W
ProtectionsPolarity inversion
Battery disconnecting extravoltage (not repeatitive)
Working temperature- 10 °C / + 60 °C
Storage temperature- 30 °C / + 70 °C
Visualization3 rows display and variable luminous intensity
Acoustic notificationBuzzer 5-30 Vcc
Inputs3 analog and 6 digital
Outputs (on request)Automatic engine stop
Preheating
Engine revolutionAlternator “W” contact
Analog readingsVeglia, VDO

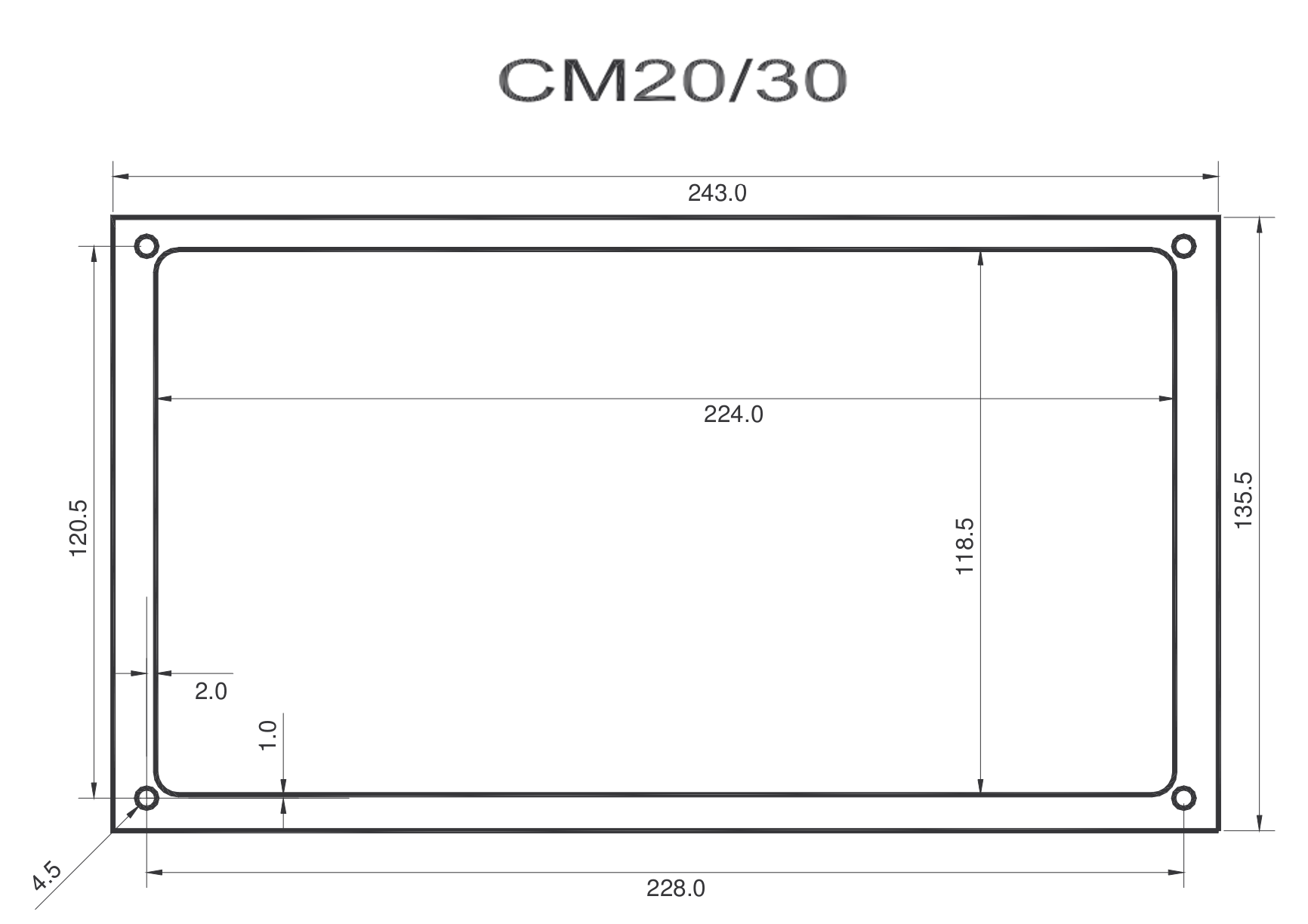

Size (mm)246 x 138 x 100
