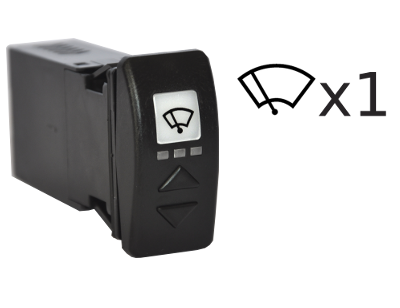

It replaces up to two standard switches and it’s suited for a motor provided with parking switch. It works both with single speed and double speed motor.
Three buttons in the switch allow to manage all the functions needed for windscreen cleaning: ON/OFF, timing and washing program.
It is user friendly and it can be easily installed in few minutes, no screws are needed.
- 3 intermittent speed
- one or two continuous speed
- motor brake
- washing program
|Power supply||10V to 30V DC|
|Internal fuses||4 Amps, self-resettable PTC|
|Stand-by current||Less than 20 mA|
|Motors- output currents||Single or double speed – 4 Amps max.|
|Inputs||1 parking switch (open in park position)
Dimmer (connect to + supply if not used)
|Outputs||1 slow speed – SLOW
1 high speed – FAST (if 2 speed motor)
1 wash pump (positive pole)
|Functions||3 intermittent settings
2 continuous speeds, slow and high speed
Wash / wipe program
|Connections||10 poles connector|
|Working temperature||-10 °C / +50 °C|
|Storage temperature||-20 °C / +70 °C|
