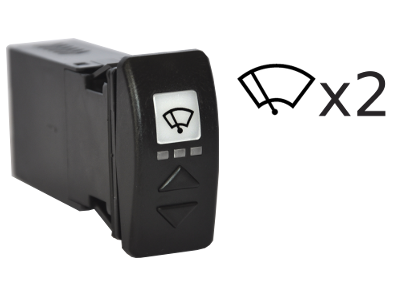

It replaces up to three standard switches and it’s suited for motors provided with parking switch. It works both with single speed and double speed motors.
Three buttons in the switch allow to manage all the functions needed for windscreen cleaning: ON/OFF, timing and washing program.
It is user friendly and it can be easily installed in few minutes, no screws are needed.
- 3 intermittent speed
- one or two continuous speed
- motor brake
- washing program
|Power supply||10V to 30V DC|
|Internal fuses||4 Amps, self-resettable PTC|
|Stand-by current||Less than 20 mA|
|Motors- output currents||Single or double speed – 4 Amps max.|
|Inputs||2 parking switch (open in park position)
Dimmer (connect to + supply if not used)
|Outputs||2 slow speed – L and R SLOW
2 high speed – L and R FAST (if 2 speed motors)
1 wash pump (positive pole)
|Functions||3 intermittent settings
2 continuous speeds, slow and high speed
Wash / wipe program
|Connections||10 poles connector
2x male 6,3 mm fast-on
|Working temperature||-10 °C / +50 °C|
|Storage temperature||-20 °C / +70 °C|
