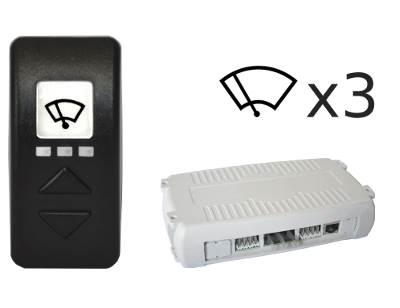

Control system for three wipers suited for high power motors. This system consists of two control switches and one relay box.
It replaces up to three standard switches and it’s suited for motors provided with parking switch. It works either with single speed motors and with double speed motors.
Three buttons in the switch allow to manage all the functions needed for windscreen cleaning: ON/OFF, timing and washing program.
It is user friendly and it can be easily installed in few minutes, no screws are needed.


  • 3 intermittent speed
  • one or two continuous speed
  • motor brake
  • washing program
  • dimmer input
  • Easy to install
  • Plug-in connector
  • Fast-on contacts for motor connections.

Power supply10V to 30V DC
Internal fuses12A PTC for each motor
Stand-by currentLess than 20 mA
ProtectionsPolarity inversion
Motors- output currentsSingle or double speed – each motor 12 Amps max.
Inputs3 parking switches (open in park position)
Dimmer (see relay box connections paragraph)
Outputs3 slow speed – SLOW
3 high speed – FAST (if present)
1 wash pump (positive pole)
Functions3 intermittent settings
2 continuous speeds, slow and high speed
Wash / wipe program
Switches led brightness regulation (if present)
ConnectionsRelay box
3x 4 poles connectors 2x male 9,5 mm fast-on 2 1x 8 poles connectors RJ45 (can bus network)

Active switch
1x 8 poles connectors RJ45 (can bus network)
1x 10 poles teleph. conn.

Passive switch
1x 10 poles teleph. conn.
CaseRelay box Grey ABS
Switch Black ABS
Working temperature-25 °C / +55 °C
Storage temperature-30 °C / +80 °C
