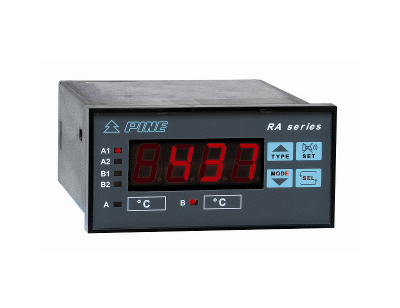

RA10 is a programmable unit, fit for systems where high temperatures have to be monitored.
It reads temperature digitally by K or J type thermocouples, galvanically isolated.
It is provided with a 12 bit A/D converter, with adjustable offset and slope (gain) for high precision readings.

Power supply12/24 Vcc (10 - 30 Vcc)
Power consumption< 200 mA 12V - < 100 mA 24V
Working temperature–5 / 60 °C
ThermocouplesK type
J type
K type range of measure0 - 990 °C
J type range of measure0 - 750 °C
Accuracy+/- 2 °C
Resolution1 °C
AlarmsTwo adjustable threshold for each alarm
LED signaling
Relay outputSPDT type, Imax = 2A res. / Vmax = 50 V
Size DIN 43700 (mm)48 x 96 x 120
Cutting edge (mm)44 x 91
