RB01 are general purpose I/O boards for applications in several fields such as naval, industrial, building automation, factory automation.
RB01 boards have two galvanically isolated communication lines, a standard RS485 and a CANBUS.


  • 8 digital inputs with optical insulation
  • 6 analogue inputs
  • 2 inputs for frequency measurement
  • 8 output relays with Common, NO and NC contacts (SPDT)
  • 2 low power analogue outputs
  • Galvanically isolated RS485 serial communication line
  • Galvanically isolated CANBUS serial communication line
  • Power supply: 12/24 VDC (from 10 to 35V) and from 8 a 24 VAC 50/60 Hz

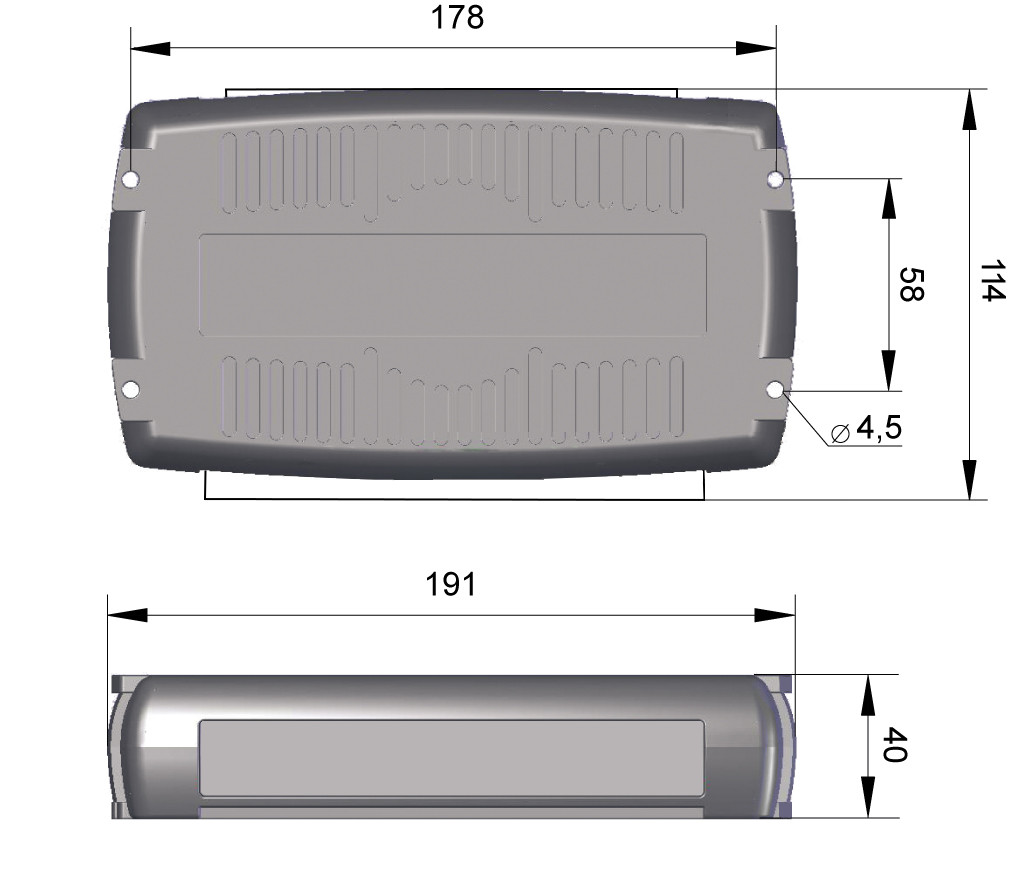

  • DIN rail version (DIN EN 50022) or grey ABS box

RB01S1 inputs and outputs are managed by the serial communication lines using the MODBUS RTU protocol over RS485 and by a proprietary open protocol (similar to MODBUS RTU) over CANBUS.

It is possible to use only one of the two serial lines or both. The serial lines are galvanically isolated by power supply and galvanically isolated one by the other.
